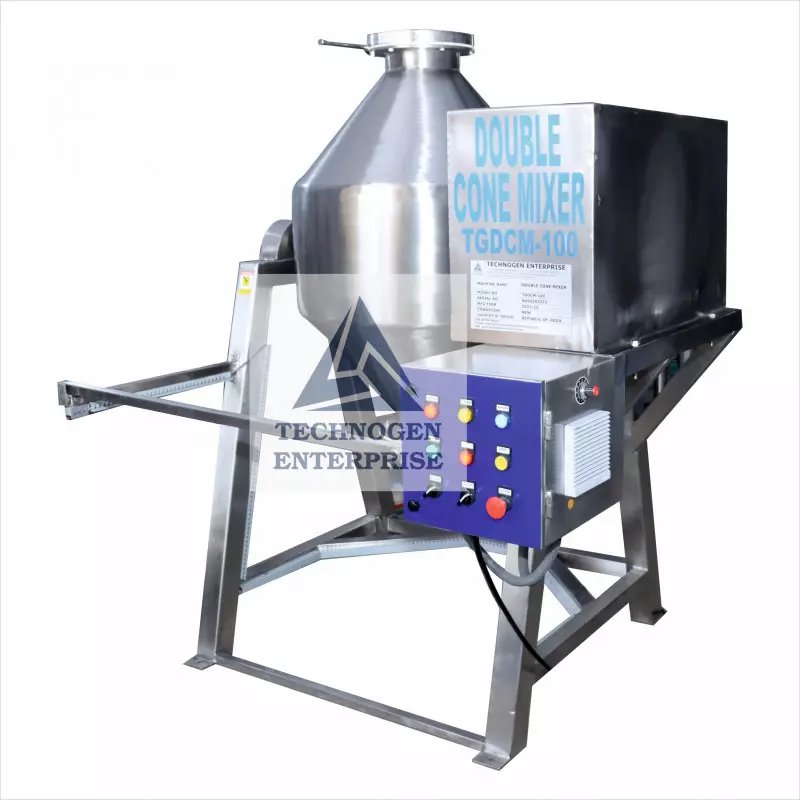

Double Cone Blender

Product overview

Dry powders and granules require continuous redistribution inside the blending vessel to achieve a uniform mixture without relying on aggressive high-speed agitation. The geometry of the vessel plays an important role in repeatedly dividing, moving and recombining the material during rotation.

The Double Cone Blender uses two conical sections joined at their bases. As the vessel rotates, the material undergoes repeated tumbling and cascading movement between the cone sections, producing continuous intermixing of compatible powders, granules and solid materials.

Technogen Enterprise is a Manufacturer and Supplier of Double Cone Blender equipment for Tanzania, serving Pharmaceutical, Food Processing, Chemical and Cosmetic industries requiring controlled dry-material blending.

The general machine structure is manufactured from SS 304, while product-contact parts can be supplied in Stainless Steel 304 or 316 according to requirement.

Inside the cone, a single shaft carries four fixed mirror-polished baffles to assist movement and redistribution of the material.

The blender incorporates a manual handwheel arrangement for inching and controlled positioning of the vessel. Material is discharged through a butterfly valve, while an openable charging cover provides access for material loading and cleaning.

Safety provisions include two rear safety rods, front SS 304 pipe guards and a limit switch.

The internal and external cone surfaces are mirror polished, while the supporting structure is matt polished.

For Tanzania manufacturers processing different dry formulations, the range provides multiple capacity configurations for laboratory, pilot and production-scale blending requirements.

Working principle

• Dry powders, granules or other compatible solids are charged into the Double Cone Blender through the loading opening.
• The charging cover is securely closed before operation.
• The drive rotates the double-cone vessel at the selected operating condition.
• As the two conical sections rotate, material repeatedly tumbles and cascades from one section of the vessel to the other.
• This movement continuously divides and recombines the product mass.
• The four internal fixed baffles assist redistribution and mixing of the material.
• Blending speed and mixing time can be selected according to the characteristics of the product.
• After the required blending cycle, the vessel can be positioned using the manual handwheel arrangement.
• The blended material is discharged through the butterfly valve.

Salient features

• CGMP Model : General machine structure is manufactured from SS 304.
• Double Cone Geometry : Two conical vessel sections create repeated tumbling and cascading movement.
• Stainless Steel Contact Parts : Available in SS 304 or SS 316 according to requirement.
• Internal Baffles : Single shaft carries four fixed mirror-polished baffles.
• Manual Inching : Handwheel arrangement allows manual rotation and positioning.
• Butterfly Discharge Valve : Provides controlled discharge of blended material.
• Openable Charging Cover : Provides access for product loading and cleaning.
• Adjustable Mixing Parameters : Speed and blending duration can be selected according to product requirement.
• Mirror-Polished Cone : Interior and exterior cone surfaces have mirror-polished finish.
• Matt-Polished Structure : Supporting machine structure uses matt-polished finish.
• Worm Reduction Gear : Provides controlled rotational-speed reduction.
• Food-Grade Gaskets : Used at cone ends and butterfly-valve locations.
• Dust-Free Charging : Dust-free bin charging arrangement supports controlled material loading.

Safety & interlocks

• Rear Safety Rods : Two safety rods are provided behind the blender.
• Front Safety Guard : SS 304 pipe guarding protects the operating area.
• Limit Switch : Works with the safety-guard arrangement for protected operation.

Optional / add-on features

• Flameproof Electricals : Available for suitable operating environments requiring flameproof electrical components.
• Drive Orientation : Machine can be configured with left-side or right-side drive according to layout requirement.

Applications & industries

The Double Cone Blender is suitable for controlled blending of compatible dry materials.

Pharmaceuticals

For dry powders, granules and compatible pharmaceutical ingredients.

Food Processing

For compatible powdered and granular food ingredients.

Chemical Industry

For homogeneous blending of compatible dry chemical materials.

Cosmetics

For compatible dry cosmetic powders and ingredients.

The equipment can perform mixing, uniform blending and compatible de-agglomeration operations.

Application items

• Powder Blending : Provides homogeneous mixing of compatible dry powders.
• Granule Blending : Handles compatible dry granular materials.
• Pharmaceutical Mixing : Suitable for dry pharmaceutical formulation blending.
• Food Ingredient Mixing : Blends compatible powdered and granular food ingredients.
• Chemical Blending : Suitable for compatible dry chemical products.
• Cosmetic Powder Mixing : Handles compatible dry cosmetic materials.
• De-Agglomeration : Supports compatible material de-agglomeration during blending.
