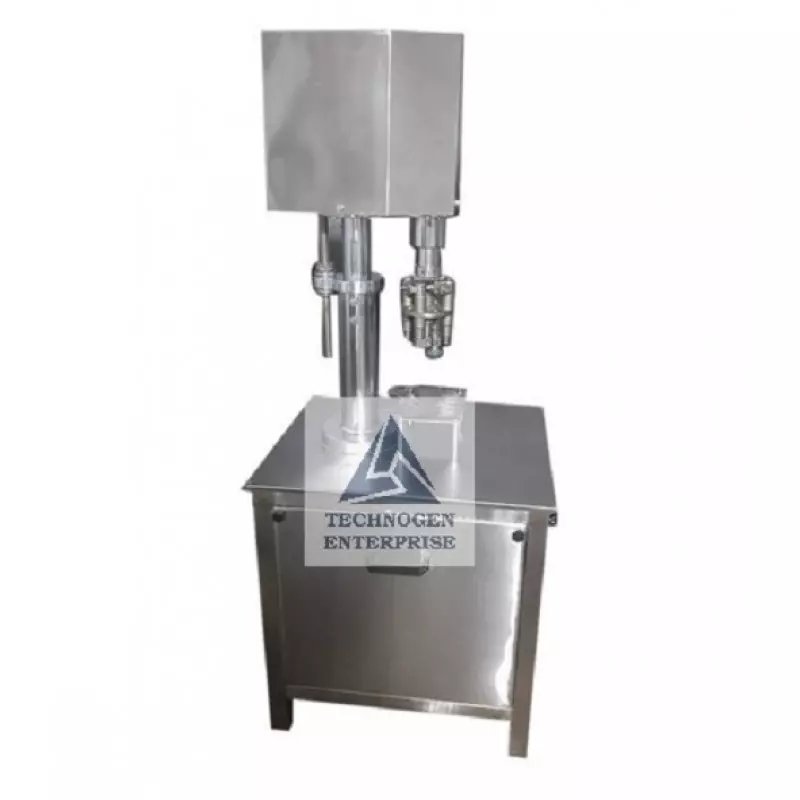

Semi Automatic ROPP Capping Machine

Product overview

Technogen Enterprise is a Semi Automatic ROPP Capping Machine Manufacturer and Supplier for Tanzania, offering the TGRCS-30S for businesses requiring reliable ROPP cap sealing at comparatively low production volumes.

The machine is designed for ROPP cap sealing of Plastic, PET and Glass bottles and is particularly suitable for start-up industries or production environments where fully automatic high-speed capping is not required.

A key feature of the machine is its motorized ROPP sealing head, which provides controlled and consistent sealing of compatible ROPP caps. The machine uses a single capping head and provides an output of up to 20 bottles per minute depending upon operator efficiency.

The TGRCS-30S handles bottles from 22 mm to 100 mm diameter and 58 mm to 240 mm height. ROPP or screw cap diameters from 18 mm to 32 mm can be accommodated with the appropriate change part. When the cap diameter changes, the required change part is the cap die.

For different bottle diameters, the machine is designed to avoid unnecessary bottle change parts, while the adjustable bottle height gauge helps the operator set the machine according to different bottle heights.

The machine is mechanically driven and incorporates a worm gearbox and gear motor for smooth operation. A Variable Frequency Drive provides speed adjustment according to production requirements.

Its compact construction, Stainless Steel matt finish, low power consumption and noise level of less than 70 dB make it suitable for smaller production areas.

For businesses in Tanzania, including start-up and low-volume production facilities in Dar es Salaam, Arusha, Mwanza, Dodoma, Morogoro and Mbeya, the machine provides a practical semi-automatic solution for pharmaceutical, beverage, wine and distillery bottle capping.

Working principle

The Semi Automatic ROPP Capping Machine operates with a motorized ROPP sealing head and a single capping station.

The bottle is positioned for the capping operation and the machine setting is adjusted according to bottle height using the bottle height adjustment arrangement.

The compatible ROPP cap is then sealed by the motorized capping head. The mechanically driven system provides the required capping action while the operator controls the bottle handling sequence.

Machine speed can be adjusted through the Variable Frequency Drive according to the required operating condition.

The production output depends on operator efficiency, with a stated capacity of up to 20 bottles per minute.

For bottle diameter changes, no dedicated bottle change parts are stated as necessary. When the cap diameter changes, the appropriate cap die is required.

This semi-automatic arrangement is suited to Tanzania manufacturers requiring consistent ROPP sealing without moving to a fully automatic multi-head capping system.

Salient features

• Compact Design : Space-efficient construction suitable for smaller production areas.
• Maintenance-Friendly Operation : Designed to minimise frequent maintenance requirements.
• Worm Gearbox & Gear Motor : Provides smooth and consistent mechanical operation.
• Front-Mounted Operating Panel : Provides convenient access to machine controls.
• Motorized Sealing Head : Provides controlled ROPP cap sealing.
• Bottle Diameter Flexibility : Different bottle diameters can be handled without dedicated bottle change parts.
• Variable Speed Control : Machine speed can be adjusted through a Variable Frequency Drive.
• Low Noise Operation : Noise level is specified below 70 dB.
• Low Power Consumption : Machine power requirement is 0.75 KW.
• Adjustable Bottle Height Gauge : Simplifies machine setting for different bottle heights.
• Stainless Steel Matt Finish : Provides a durable industrial machine finish.

Applications & industries

The Semi Automatic ROPP Capping Machine is designed for ROPP cap sealing of Plastic, PET and Glass bottles.

The Machine find it's applications in the Pharmaceutical, Beverage, Wine and Distillery industries.

Its semi-automatic operating format makes it particularly suitable for start-up industries, lower production volumes and applications where high-quality ROPP sealing is required without a fully automatic production line.

The machine accommodates bottles from 22 mm to 100 mm diameter and 58 mm to 240 mm height, while ROPP or screw cap diameters from 18 mm to 32 mm can be handled with the appropriate cap die.

For Tanzania buyers, final machine suitability should be checked against the actual bottle dimensions, cap diameter and required production output.

Application items

• Pharmaceutical bottle ROPP capping.
• Beverage bottle ROPP capping.
• Wine bottle ROPP capping.
• Distillery bottle ROPP capping.
• Plastic bottle ROPP cap sealing.
• PET bottle ROPP cap sealing.
• Glass bottle ROPP cap sealing.
• Round bottle capping applications.
• Square bottle capping applications.
• Triangular bottle capping applications.
• Low-volume bottle capping operations.
• Start-up production applications.
• 18 mm to 32 mm ROPP or screw cap applications.
